Irrigation & Pump Station SCADA Case Study: Automating Water Networks Across Abu Dhabi

By Arch. Dany Dandachi, ALMAFOR, Abu Dhabi, United Arab Emirates

A pumping station is the most unforgiving kind of asset to automate badly. It runs every day, it usually sits unmanned, and the first sign of a control problem is often a flooded chamber, a dry-run motor failure, or a landscape that browns because pressure quietly dropped overnight. This case study looks at how ALMAFOR has automated irrigation and water pumping stations across Abu Dhabi and Al Ain, and what separates a pump station SCADA system that operators trust from one that just adds another screen to ignore.

It is written for municipalities, main contractors, landscape and infrastructure developers, and facility owners evaluating industrial automation companies in the UAE for water and irrigation control.

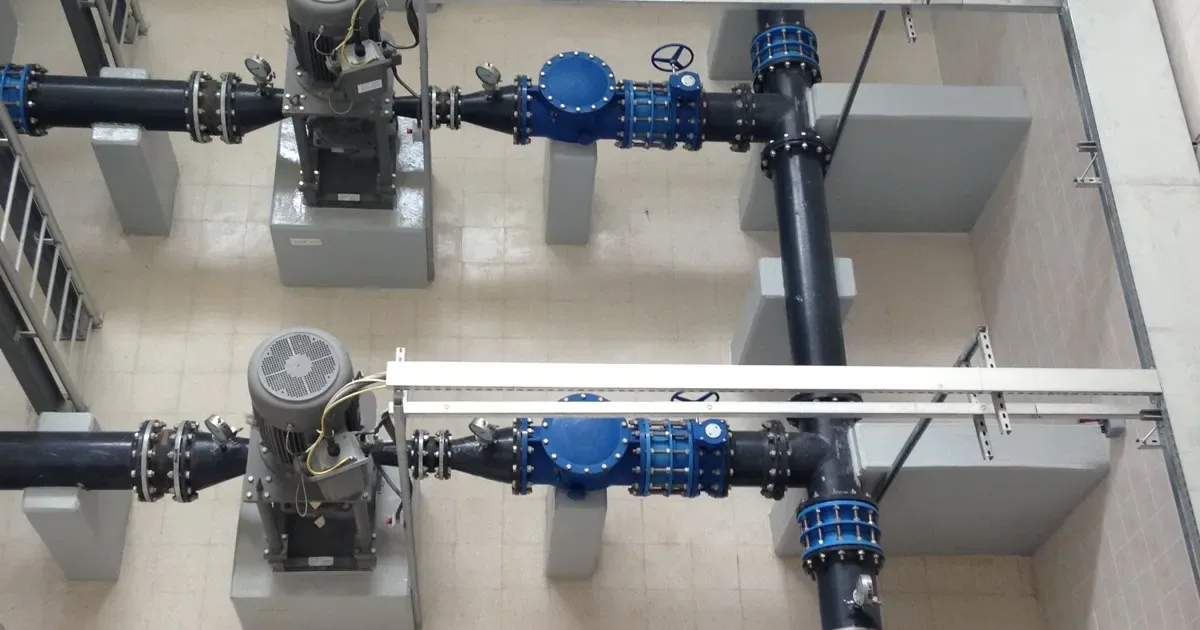

Finished irrigation pumping station with SCADA control at Khalifa City, Abu Dhabi

A completed irrigation pumping station delivered by ALMAFOR at Khalifa City "A", Abu Dhabi, pump sets, flanged pipework and instrumentation integrated under one SCADA system.

Project reference at a glance

Flagship project: Irrigation Mains at Khalifa City "A"

Client / End user: Abu Dhabi Municipality, PGD

Consultant: Parsons International Limited

Scope: Supply, install and commissioning of 5 pumping stations, 5 MCC panels (Form 4), 5 PLCs, 5 RTUs, HMI touch screens, 15 VFDs; pump control panels with RTU and SCADA integration (1 duty / 1 standby sets)

ALMAFOR role: Main Contractor

Related projects: Design & Build of Various Parks for DMT, Al Falah, Al Fouh Ah, MBZ, Rabdan (Al Ain & Abu Dhabi), 7 pumping stations; Celebration Plaza / Edge Park and Shakhbout City parks; Abu Dhabi Cycling Club irrigation automation

What a pump station SCADA system has to deliver

A SCADA system for a pumping station is not a dashboard bolted onto a motor. Its job is to make an unmanned, safety-relevant process visible and controllable in real time, wet well or reservoir level, discharge pressure, flow, pump status, valve position, and power condition, and to act on that data with disciplined logic: duty/standby rotation, minimum run-time protection, dry-run prevention, and orderly alarms.

Vertical pump hall with manifold, instrumentation and PLC/RTU control

Pump hall and manifold at Khalifa City "A", inline strainers, instrumentation and pump sets tied into local PLC/RTU control.

The PLC, RTU and VFD layer: where reliability is built

The strength of a pump station SCADA system is decided at the field and control layer long before the supervisory screen appears. On these projects the control architecture combined three elements that have to be engineered together:

PLC for the station's real-time control logic, sequencing, interlocks, protection, and duty/standby management. Sound PLC programming here is what prevents nuisance trips and short cycling.
RTU for telemetry back to the wider network and remote control centre, so a dispersed set of stations can be supervised from one place with local fallback if communications drop.
VFD control on the pump motors for soft starting, pressure/flow regulation and energy saving, protecting both the mechanical plant and the power network from hard starts.

MCC and motor-control panel with push-buttons for pump station SCADA

MCC and motor-control panel with push-buttons and indication for a pump station SCADA system.

From landscape irrigation to a transmission pump station

What demonstrates the depth of this capability is the range of duty ALMAFOR has automated with the same engineering discipline:

DMT landscape parks (Al Falah, Al Fouh Ah, MBZ, Rabdan). Pump control panels with RTU and SCADA integration for irrigation pump sets across seven pumping stations in Al Ain and Abu Dhabi, small duty/standby vertical pump sets, but real SCADA integration and remote supervision.
Celebration Plaza / Edge Park and Shakhbout City parks. Supply, installation, testing and commissioning of SCADA systems, VFD and ICA panel integration for irrigation controllers, recent work (2024) for the Department of Municipalities and Transport.
Abu Dhabi Cycling Club. Irrigation system automation with RTU and PLC in a wall-mounted control panel, plus pressure sensors, differential pressure transmitters and switches, motorised gate valves and full instrumentation.

Water pumping station with vertical pump-motors and VFD control, UAE.

Why turnkey delivery matters for water and irrigation automation

Pumping projects fail most often at scope boundaries. The civil contractor builds the chamber, the mechanical contractor sets the pumps, an electrical contractor pulls power, and a controls vendor is handed a part-built station and told to "add SCADA." The result functions, but no one owns the operational outcome.

ALMAFOR delivers these projects as a single engineering contractor, MCC and control panel building, instrumentation, PLC and SCADA integration, VFD configuration, installation, testing and commissioning under one accountable scope. For a municipality or developer, that means the station is handed over as a working system, with I/O verified end to end and control logic proven under real operating conditions, not a set of separately delivered parts that happen to share a building.

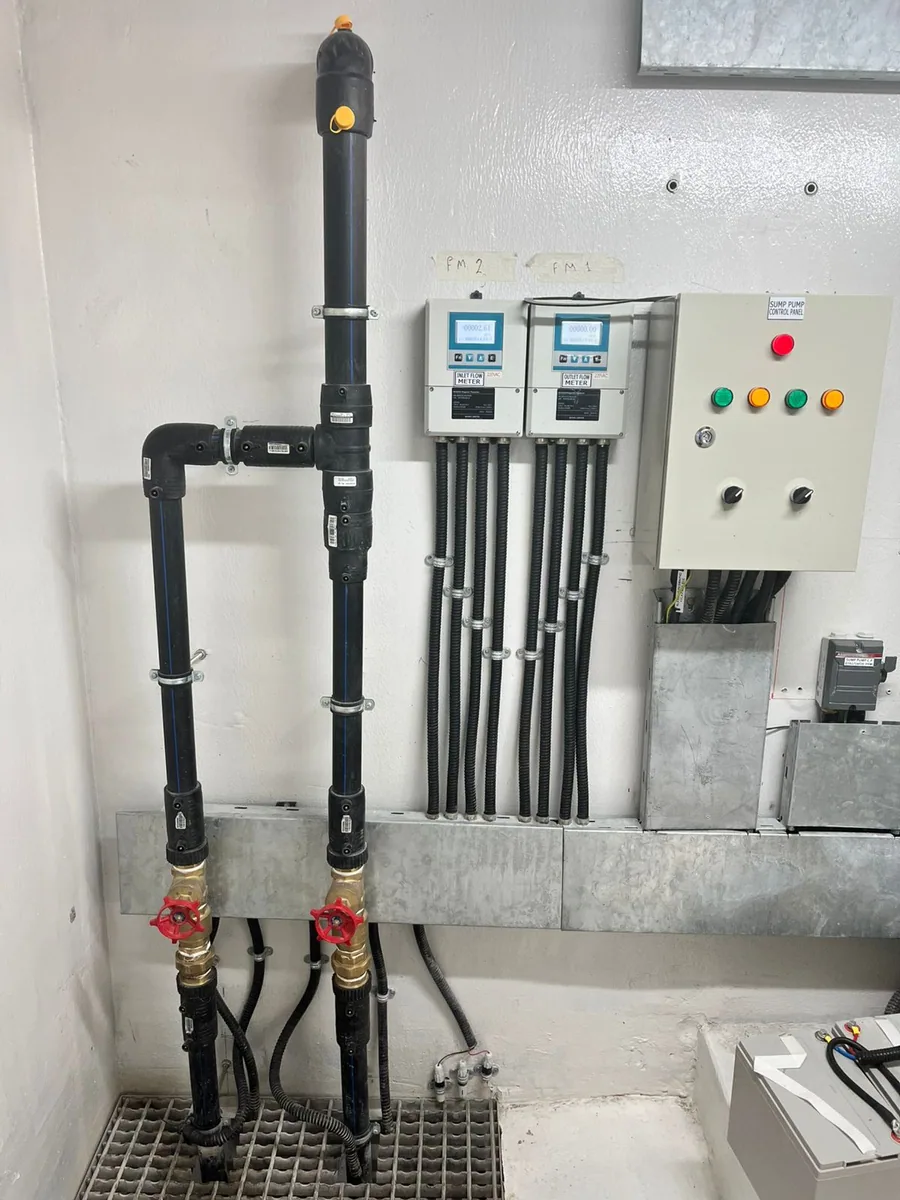

Park irrigation VFD and PLC control panel built by ALMAFOR, Abu Dhabi.

Trade-offs owners should weigh

A well-integrated pump station SCADA system costs more up front than a basic starter panel. The payback is in stations that run unmanned with confidence: cleaner duty/standby behaviour, earlier and clearer alarms, and control logic that matches the real duty of the site.

What this pump station SCADA case study proves

That is what ALMAFOR means by industrial automation delivered as a complete engineering solution rather than an isolated software layer. For anyone searching for industrial automation companies in the UAE to automate a pumping or irrigation network, the useful question is simple: can the contractor take the station from civil-complete to a fully integrated, remotely supervised SCADA system, and stand behind how it behaves every day after handover? On these projects, that is exactly the scope ALMAFOR owned.

ALMAFOR is an ISO 9001:2015 and ISO 45001:2018 certified electrical, automation and control-systems contractor based in Abu Dhabi, UAE, and an approved Schneider Electric system integrator. Author: Arch. Dany Dandachi, ALMAFOR engineering and project delivery team.
